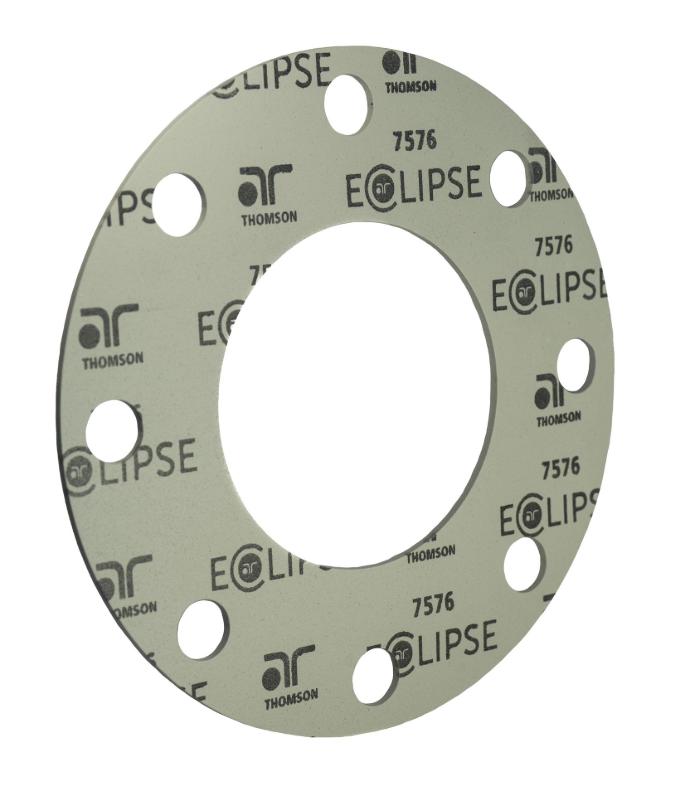

Eclipse® 7576 PTFE/Proprietary Filler Gasket
The NEXT GENERATION ‘All-in-One’
PTFE
sheet gasket that combines
universal chemical compatibility with
unmatched performance
and versatility.
Features / Benefits
- Low load to seal.
- Universal chemical compatibility - one gasket for all PTFE gasket service.
- Premium, genuine filled Teflon™ ensures reliability, consistency and performance.
- Exceptional rigidity.
- Outstanding creep resistance and load retention.
- Excellent resistance to strong caustics and acids.
- Lays flat allowing for improved cutting and handling.
Typical Applications
- Suitable for strong caustics, sodium hydroxide, pulp cooking liquors (white, black, & green) 0-14pH, chlorine dioxide (CLO2), solvents, and sulfur dioxide (SO2). Acid applications.
- Mining (sulfuric acid leaching process and PAL - pressure acid leaching). • Cryogenics, hydrocarbons, water, and saturated steam less than 100 psi (7 bar), 338°F (170°C).
- Pulp and Paper, Food Processing, Pharmaceutical, Chemical Processing, Brewing and Distilling, and Water Treatment.
- Non-metallic or fragile flanges
and flanges with less bolt load
available.
Specifications
Construction: PTFE / Proprietary Filler
Temperatures: -450°F (-268°C) to 500°F (260°C)
Max Pressure: 1200 psi (83 bar)
Colour: Grey with Black branding.
Sheet Sizes: Custom sheet sizes and
thicknesses available upon
request. Also available in
larger 70” x 70” sheets.
Teflon™ is a registered trademark of The Chemours Company.
