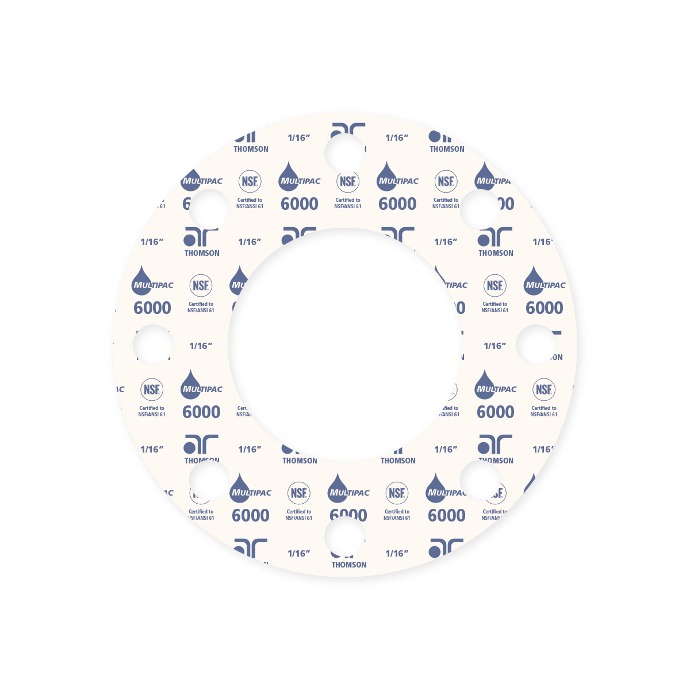

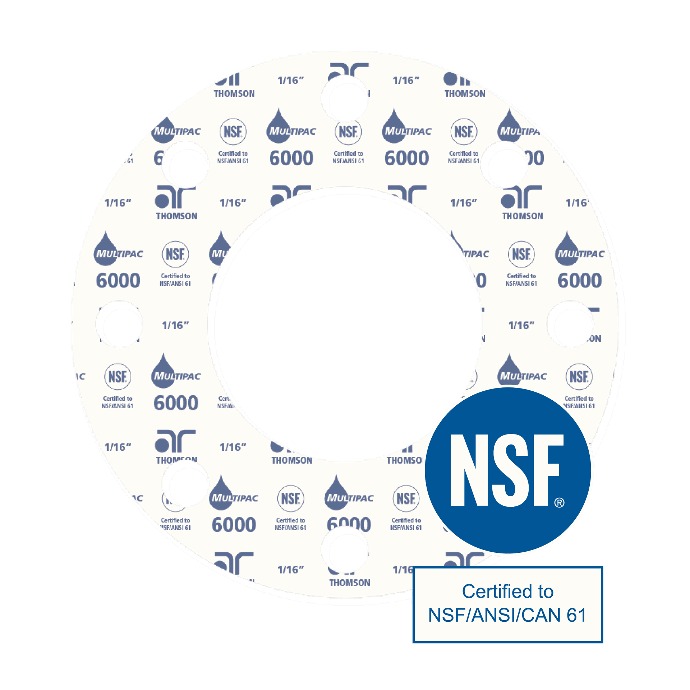

MultiPac ™ 6000 – Aramid / Nitrile Gasket
NSF/ANSI/CAN 61 certified gasket for potable water and very good dielectric strength.
Features / Benefits:
- NSF-61 Certified sheet gasket material.
- Very good seal-ability and mechanical properties.
- Excellent application versatility.
- Good dielectric strength.
- Exceptional handle ability and easy to cut.
- FDA compliant.
Typical Applications:
- Municipal Waterworks.
- Potable water, steam, oil, mild alkalis and acids, hydrocarbons and solvents.
- Food and Beverage.
- Saturated steam and CIP.
Specifications:
Construction : Aramid/Inorganic Fiber with Nitrile Binder
Max Pressure: 1200 psi (83 bar)
Tensile Strength: 1600 psi (110 bar)
Temp. Range, Max:
Minimum: -100°F (-75°C)
Intermittent: 700°F (371°C)
Continuous: 400°F (204°C)
On January 4, 2014, the Safe Drinking Water Act (SDWA) & The Environmental Protection Agency (EPA) legislation went into full effect. Rubber used for gaskets and seals in potable water applications must be proven to prevent leaching of harmful contaminants prior to installation. If you manufacture, sell or distribute water treatment or distribution products in North America, your products are required to comply with these standards. Visit NSF.org for more information: NSF/ANSI 61: Drinking Water System Components.
