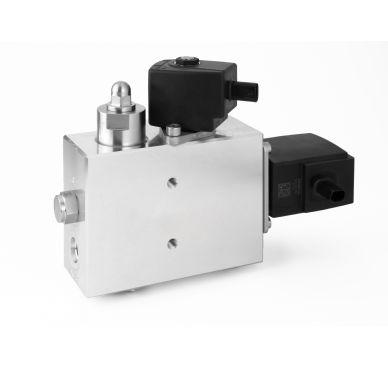

A875

Pressure Regulator for Hydrogen Vehicles: Gas / Piston / Non-Venting / Max. Inlet: 875 bar (12,690 psi) / Max. Outlet: 30 bar (435 psi) / Cv 0.35 or 0.5

Product Overview A875



INTRODUCING THE A875...
The A875 is a single-bodied regulator that features mechanical pressure reduction paired with a state-of-the-art proportional control valve, ensuring precise gas flow management essential for optimizing hydrogen combustion engines.

Additionally, the integrated pressure relief valve (PRV) enhances safety and operational reliability in high-pressure settings. The A875 also features an integrated solenoid valve on the outlet of the regulator for complete automated gas isolation. Both the proportional and solenoid valves feature automotive industry standard plug connectors for ease of integration into vehicle wiring systems.

A875 Features

• Electronic valves
• Integrated PRV
• Balanced main valve
• Integrated filtration

A875 Applications

• Hydrogen vehicles

A875 Specifications

Maximum Rated Inlet Pressure: 875 bar (12,690 psi)
Outlet Ranges: Up to 30 bar (435 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 2.4 kg (5.3lbs) (Stainless Steel)
Hydrogen Service Level: H35 or H70
