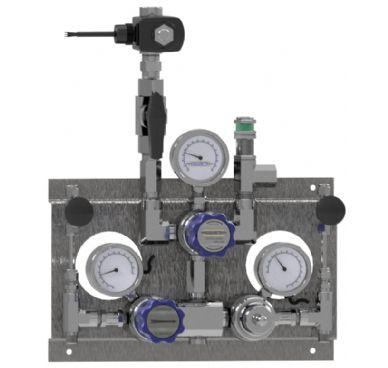

ACS101

Auto-Changeover System: Gas / Piston / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.5

Product Overview ACS101


INTRODUCING THE ACS101 ...
The ACS101 auto-changeover system provides a continual supply of gas, ideal for applications such as in medical or laboratory processes where a continual supply of gas is essential.

Upon depletion of one bank, the other automatically cuts in. A quick switch of the lever ensures the supply is reset to its original value. An optional second stage regulator prevents fluctuations in supply pressure.

With a higher flow rate than the ACS310, the ACS101 incorporates the MF101 regulator — further details may be found on the MF101 datasheet. It is also supplied as standard with two flexible inlet connection hoses (1/4" NPT connection and 1 metre length).

ACS101 Features

• Balanced as standard for improved control across the
pressure range
• Optional second-stage regulator
• Stand-alone or wall-mountable

ACS101 Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 20 bar (290 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 12.2kg (26.9lbs)
