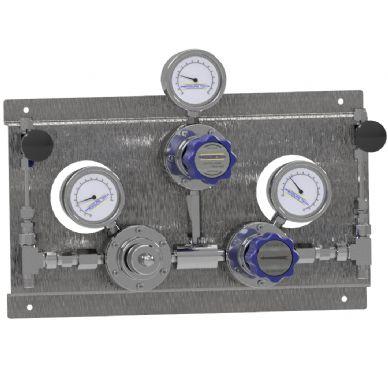

ACS240

Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 10 bar (145 psi) / Cv 0.06

Product Overview ACS240


INTRODUCING THE ACS240 ...
The ACS240 auto-changeover system provides a continual supply of gas, ideal for applications such as in medical or laboratory processes where a continual supply of gas is essential.

Upon depletion of one bank, the other automatically cuts in. A quick switch of the lever ensures the supply is reset to its original value. An optional second stage regulator prevents fluctuations in supply pressure.

With a large diaphragm sensing area that provides accurate control for low pressure applications, the ACS240 incorporates the ACS240 incorporates the LF240 regulator — further details may be found on the LF240 datasheet. It is also supplied as standard with two flexible inlet connection hoses (1/4" NPT connection and 1 metre length).

ACS240 Features

• ~8 bar maximum changeover pressure allowing more test media to be consumed from supply source
• Optional second-stage regulator
• 40 micron filter
• Stand-alone or wall-mountable

ACS240 Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 10 bar (145 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 9.8kg (21.6lbs)
