ACS310

Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.06

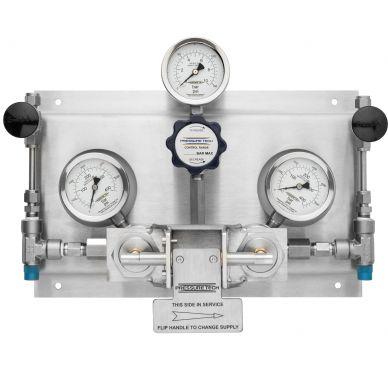

Product Overview ACS310


INTRODUCING THE ACS310...
The ACS310 auto-changeover system provides a continual supply of gas, ideal for applications such as in medical or laboratory processes where a continual supply of gas is essential. Upon depletion of one bank, the other automatically cuts in. A quick switch of the lever ensures the supply is reset to its original value. An optional second stage regulator prevents fluctuations in supply pressure.

The ACS310 incorporates the LF310 regulator with a solid disk type main valve assembly - further details may be found on the LF310 datasheet.

ACS310 Features

• User-friendly design with easy to read pressure indication, even whilst in-service
• Optional second-stage regulator
• 40 micron filter
• Stand-alone or wall-mountable

ACS310 Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 20 bar (290 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 7.2kg (15.8lbs)
