ACU310

Auto-Changeover Regulator/Unit: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv: 0.06

Product Overview ACU310


INTRODUCING THE ACU310...
The ACU310 is available in to purchase in two configurations:
Option 1: A standalone changeover regulator comprising of two regulators within one regulator body. This allows the continual supply of gas between two bottles due to a differential pressure setting of the two pressure regulators. This will lead to a change in the outlet pressure as the changeover between the main supply and secondary supply takes place.

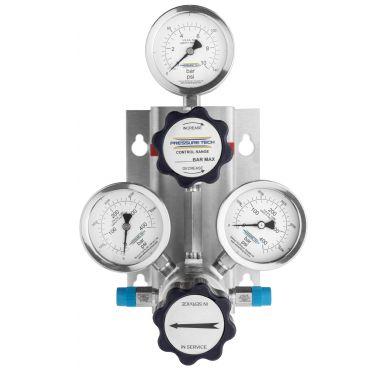

Option 2: A compact wall-mounted changeover unit that provides a steady outlet pressure from a second-stage pressure regulator as the first-stage changeover regulator controls the pressure from the primary and secondary gas cylinders.

Check valves are fitted as standard to both options to prevent gas from escaping whilst bottles are replaced. Ancillary equipment such as pressure gauges and relief valves can also be added.

ACU310 Features

• Inconcel® X750 diaphragm
• User-friendly design and easy to install
• Features second-stage regulator
• 0.01% decaying pressure effect

ACU310 Applications

• Gas analyzer systems
• Life support systems
• Laboratories and research labs

ACU310 Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 20 bar (290 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 3.6kg (7.9lbs)
