CYL310

Cylinder Pressure Regulator Assembly: Gas / Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06

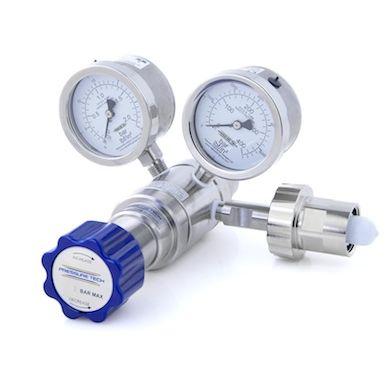

Product Overview CYL310


INTRODUCING THE CYL310...
The CYL310 pressure regulator can be supplied as a single- or two-stage gas cylinder regulator assembly with full safety pattern gauges, relief valve and isolation valve. Please note - the CYL310 is supplied as standard with a bottle connector.

CYL310 Features

• Customizable to suit individual applications
• Solid disk seat design
• 40 Micron inlet filter
• Inconel® X750 diaphragm

CYL310 Applications

• Laboratories
• Analyser systems
• Purge systems
• Speciality and inert gases

CYL310 Specifications

Maximum Rated Inlet Pressure: 414bar (6,000 psi)
Outlet Ranges: Up to 35 bar (510 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 1.4kg (3.1lbs)
