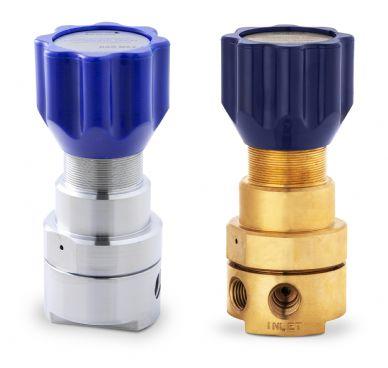

LF310

Low-Flow Pressure Regulator: Gas / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 or 0.15
Product Overview LF310
INTRODUCING THE LF310...
The LF310 is a single-stage diaphragm-sensed pressure regulator for applications that require higher supply pressures in addition to an extended life cycle.
Based on the LF300 - with its long-lasting Inconel® X750 diaphragm - the LF310 also offers a ‘solid disk’
seat design which is more robust for aggressive or high temperature applications.
LF310 Features
• Inconel® X750 diaphragm
• 316SS threaded bonnet
• Solid disk seat design
• 40 micron inlet filter
• Lightweight compact design
• High accuracy
LF310 Applications
• Gas analyser systems
• Gas cylinder regulator assemblies
• Portable calibration kits
• Laboratories and research labs
LF310 Specifications
Maximum Rated Inlet Pressure: 414 bar (6,000 psi)
Outlet Ranges: Up to 35 bar (510 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 0.9kg (2lbs)
