MINI300

Compact and Low-Flow Pressure Regulator: Gas / Piston / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 100 bar (1,450 psi) / Cv 0.06

Product Overview MINI300

 INTRODUCING THE MINI300...
The MINI300 provides an economical, lightweight and versatile regulator range, designed for customers who
want accurate control from a compact unit.

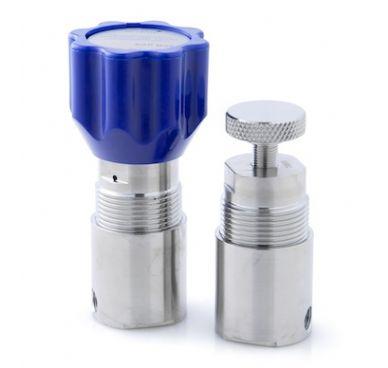

The MINI300 features fully supported ‘sensitive’ pistons with low pressure and high-pressure outlet options. There is also a choice of handwheel or thumbwheel adjustment.

MINI300 Features

• Piston sensing element
• Optional adjustment methods
• Compact design
• 316SS threaded bonnet

MINI300 Applications

• Analyser systems
• Point of use
• Instrumentation control
• Gas sticks
• Lecture bottle assembly

MINI300 Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 100 bar (1,450 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 0.5kg (1.1lbs)
