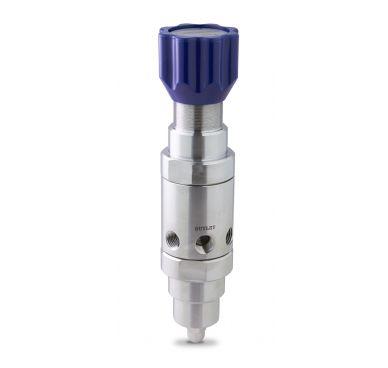

TS310

Two-Stage Pressure Regulator: Gas / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. In: 414 bar (6,000 psi) / Max. Out: 25 bar (360 psi) / Cv 0.06

Product Overview TS310

INTRODUCING THE TS310...
The TS310 is a two-stage diaphragm-sensed pressure regulator with solid disk seat design to allow use on wide temperate range and media types, with no elastomeric seals. Suitable for stable pressure control under decaying inlet conditions.

The first stage of the regulator is preset at the factory and locked to prevent alteration. The second stage of the regulator, with a PCTFE seat as standard, can be adjusted by the user between various outlet pressures within the range.

TS310 Features

• Metal-to-metal seating diaphragm
• Solid disk seat design
• No elastomeric seals
• -60 to +200­°C temperature range
• 0.04% decaying pressure effect
• 'Interstage' relief valve option
• 40 micron inlet filter

TS310 Specifications

Maximum Rated Inlet Pressure: 414 bar (6,000 psi)
Outlet Ranges: Up to 25 bar (360 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 1.5kg (3.3lbs)
