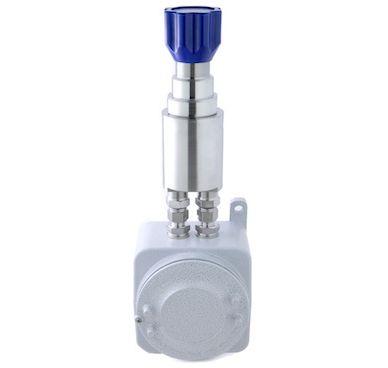

XHR310

Steam or Electric Dual-Heated Pressure Regulator: Gas or Liquid / Inconel® X750 Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 / ATEX and IECEx Certified

Product Overview XHR310


INTRODUCING THE XHR310...
The XHR310 is a diaphragm-sensed, dual-heated pressure regulator, designed to maintain sample liquids and gases in their vapour state. Certified to ATEX directive 2014/34/EU, its two 100W heater cartridges, are inserted in spiral machined sheaths, which agitate the media to help with the heat transfer and analysis process. Alternatively, the steam-heated option see its heater cartridges replaced with steam tubes - contact the office for further details. The propriety PCB is easy to wire and incorporates a potentiometer to adjust the heater temperature setting, and independent channel isolation switches which can be used to allow effective liquid sampling. In addition, its electrical enclosure meets the requirements of IP66 specification.

XHR310 Features

• 2 x 100W heater cartridges
• ATEX and IECEx certified
• Inconel® X750 diaphragm
• Optional entry points for cable supply

XHR310 Applications

• Natural gas sample systems
• Oxygen sample systems
• Moisture sample systems

XHR310 Specifications

Maximum Rated Inlet Pressure: 414 bar (6,000 psi)
Outlet Ranges: Up to 35 bar (500 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 4.6kg (10.1lbs)
