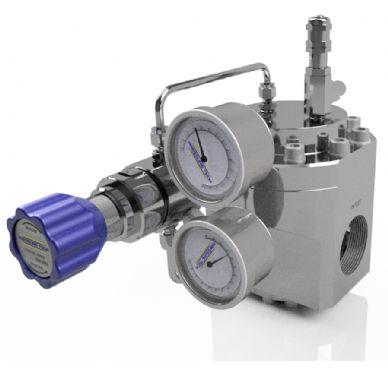

HF211

High-Flow Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 210 bar (3,045 psi) / Max. Outlet: 200 bar (2,900 psi) / Cv 13.0

Product Overview HF211

INTRODUCING THE HF211...
The HF211 is a dome-loaded, piston-sensed high-flow pressure regulator for gas or liquid applications. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating. With a Cv of 13.0, it is perfect for high-flow applications.

The HF211 is fitted with a pilot as standard (MF101 for up to 35 bar / 510 psi outlet pressure and LF540 for over 35 bar / 510 psi and up to 200 bar / 2,900 psi) - please contact the office before placing your order if you do not require a pilot.

HF211 Features

• Pilot-operated as standard
• Piston-sensing element
• High flow coefficient
• Suitable for gas or liquid applications

HF211 Applications

• Hydrogen Compression Systems
• Hydrogen Storage
• Hydrogen Distribution — Tube Trailers, MEGCs, MCPs.

HF211 Specifications

Maximum Rated Inlet Pressure: 210 bar (3,045 psi)
Outlet Ranges: Up to 200 bar (2,900 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
