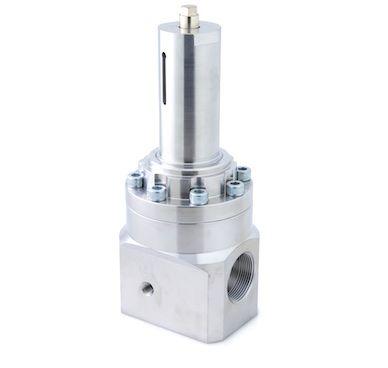

HF250

High-Flow Pressure Regulator: Gas or Liquid / Diaphragm / Non-Venting / Max. Inlet: 250 bar (3,625 psi) / Max. Outlet: 10 bar (145 psi) / Cv 7.0

Product Overview HF250

INTRODUCING THE HF250...
The HF250 is a diaphragm-sensed high-flow pressure regulator for gas or liquid applications. The liquid version includes a PEEK™ seat, whilst the gas version features PCTFE seating.

It features a balanced main valve as standard for up to 250 bar (3,625 psi) inlet pressure. An unbalanced option can be offered alternatively for applications with maximum inlet pressures of up to 50 bar (725 psi).

With a Cv of 7.0, the HF250 is perfect for high-flow applications and is also available as a dome-loaded design with a 1:1 ratio.

HF250 Features

• Balanced main valve design
• Diaphragm sensing element
• High flow coefficient
• Suitable for gas or liquids

HF250 Applications

• Hydrogen Compression Systems
• Hydrogen Storage
• Hydrogen Distribution — Tube Trailers, MEGCs, MCPs.

HF250 Specifications

Maximum Rated Inlet Pressure: 250 bar (3,625 psi)
Outlet Ranges: Up to 10 bar (145 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
