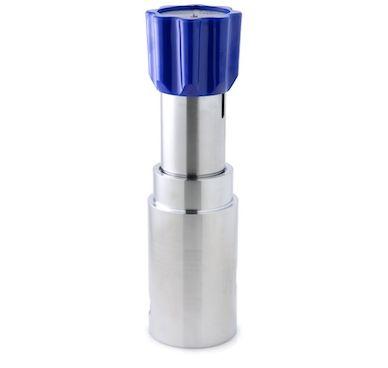

MF414

Medium-Flow Pressure Regulator: Gas or Liquid / Piston / Self- or Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 414 bar (6,000 psi) / Cv 2.0

Product Overview MF414

INTRODUCING THE MF414...
The MF414 is a medium-flow piston-sensed pressure regulator with a balanced main valve design to provide stable control under varying inlet pressures. Its versatility enables use on liquid (with a ceramic seat) or gas (with a PEEK™ seat) applications.

Both designs feature a segregated captured vent to allow pressure reduction of the outlet pressure through a 1/4" NPT port on the side of the regulator’s body. It is available spring-loaded, air-loaded or dome-loaded.

MF414 Features

• Piston sensing element
• Balanced main valve design
• Segregated captured vent
• High flow coefficient

MF414 Applications

• Valve actuator control
• Large diameter pipe testing
• Gas compression systems
• Automated pressure cycling
• Aircraft charging carts

MF414 Specifications

Maximum Rated Inlet Pressure: 414 bar (6,000 psi)
Outlet Ranges: Up to 414 bar (6,000 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 6kg (13.2lbs)
