BP301

Back Pressure Regulator for Electrolysis Applications: Gas or Liquid / Piston / Max. Rating: 150 bar (2,175 psi) / Control Range: 150 bar (2,175 psi) / Cv 0.1

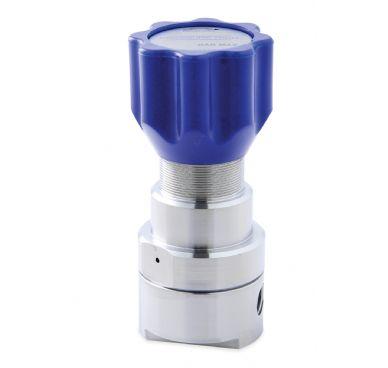

Product Overview BP301

INTRODUCING THE BP301...
The BP301 is a piston-sensed back pressure regulator for accurate back pressure control. It is a popular choice for our electrolyzer customers who rely on accurate and reliable pressure regulation to enhance the efficiency and life span of the electrolyzer.

In addition to the BP301, please also refer to our full range of back pressure regulators for a wide selection of control pressures and flow rates.

BP301 Features

• Piston sensing element
• Suitable for gas or liquid applications
• Choice of low flow coefficients
• Lightweight and compact design

BP301 Applications

 • Electrolyzer/Electrolysis

BP301 Specifications

Maximum Rated Inlet Pressure: 150 bar (2,175 psi)
Outlet Ranges: Up to 150 bar (2,175 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 0.9 kg (2lbs)
