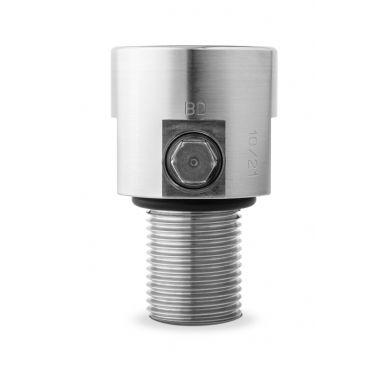

CV414-SC

TPED Approved Self-Closing Cylinder Valve: Gas / Max. Rating: 414 bar (6,000 psi) / Cv 0.06 / TPED For Up To 350 bar (5,075 psi)

Product Overview CV414-SC

INTRODUCING THE CV414-SC...
The CV414-SC is a TPED approved self-closing cylinder valve for high pressure gas systems, offering users a quick and simple disconnect feature. When connected, it provides a continual supply of gas to the system. If a cylinder refill is required, the CV414-SC’s low torque design means it is easy for users to disconnect the valve to isolate the gas supply, even under high pressure, whilst the valve remains attached to the gas cylinder.

TPED is a certification required for applications involving the transportation of pressure equipment including gas cylinders and their valves. The CV414-SC is TPED 2010/35/U approved for up to 350 bar (5,075 psi).

Plus, as an optional extra, a burst disc may be added to offer additional gas cylinder protection.

CV414-SC Features

• Low torque, quick and easy disconnect feature when a cylinder refill is required
• Continual supply of gas from the cylinder
• TPED pending
• Lightweight and compact design
• Quick cylinder filling connection for long life-span
• Optional burst disc for additional gas cylinder protection

CV414-SC Applications

• High pressure gas systems
• Hydrogen gas bottles

CV414-SC Specifications

Maximum Rated Inlet Pressure: 414 bar (6,000 psi)
Outlet Ranges: Up to 150 bar (2,175 psi)
Design Proof Pressure: 150% max. working pressure
Leakage: Bubble-tight shut-off
Weight: 0.14 kg (0.3lbs)
