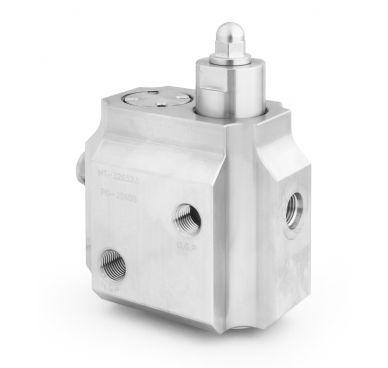

H875

Pressure Regulator for Hydrogen Passenger Vehicles: Gas / Piston / Non-Venting / Max. Inlet: 875 bar (12,690 psi) / Max. Outlet: 100 bar (1,450 psi) / Cv 0.5

Product Overview H875

INTRODUCING THE H875...
The H875 is a piston-sensed pressure regulator, designed specifically for hydrogen passenger vehicles. Its two-stage design offers accurate pressure control through two stages of pressure reduction.

With a balanced main valve as standard, it offers stable control of outlet pressures up to 100 bar (1,450 psi) from a maximum 875 bar (12,690 psi) inlet pressure.

H875Features

• Two-stage design for accurate pressure control
• Compact design
• Balanced main valve
• Dual filtration for excellent protection to sensitive internal components

H875 Applications

• Hydrogen passenger vehicles

H875 Specifications

Maximum Rated Inlet Pressure: 875 bar (12,690 psi)
Outlet Ranges: Up to 100 bar (1,450 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 1.5 kg (aluminum)
Weight: 3.5 kg (stainless steel)
