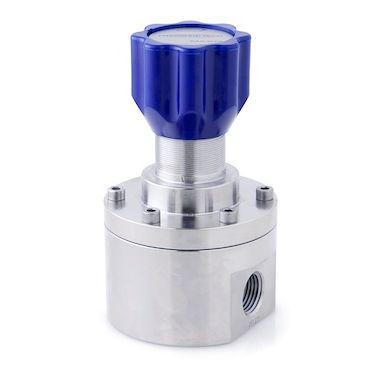

MF230

Medium-Flow Pressure Regulator: Gas or Liquid / Elastomeric Diaphragm / Non-Venting / Max. Inlet: 230 bar (3,350 psi) / Max. Outlet: 10 bar (145 psi) / Cv 1.0

Product Overview MF230

INTRODUCING THE MF230...
The MF230 is a versatile and economical medium-flow pressure regulator for gas and liquid applications with a
large sensitive elastomeric diaphragm.

The MF230 features a balanced main valve design which minimises load on the seat and provides stable pressure control under decaying inlet conditions. Additionally, servicing is simplified with easy access to the seat cartridge from the base of the regulator.

MF230 Features

• Large sensitive elastomeric diaphragm
• Balanced main valve design
• Low decaying pressure effect
• Main valve bottom entry for simplified servicing

MF230 Applications

• CNG
• Commercial diving
• Pneumatic logic systems
• Pressure test rigs

MF230 Specifications

Maximum Rated Inlet Pressure: 230 bar (3,350 psi)
Outlet Ranges: Up to 10 bar (145 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 3kg (6.6lbs)
