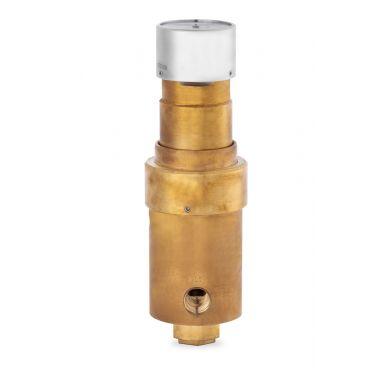

MF300T

Medium-Flow Tracking Pressure Regulator: Gas or Liquid / Piston / Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Spring Adjust. Outlet: 25 bar (360 psi) / Cv 1.0 & 2.0

Product Overview MF300T

INTRODUCING THE MF300T...
The MF300T is a piston-sensed self-venting regulator for gas or liquid applications with 1:1 tracking ratio to reference pressure.

The MF300T offers a balanced main valve as standard and features an anti-tamper locking cap as standard with its reference port in an adjustable position to suit your application. The MF300T’s 1/2" and 3/4" designs have been subjected to Oxygen Ignition Tests to EN ISO 7291.

MF300T Features

• Anti-tamper locking cap
• ASTM G93 Level C (mod required)
• Adjustable reference port position
• Balanced main valve design

MF300T Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 25 bar (360 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 6kg (13.2lbs)
