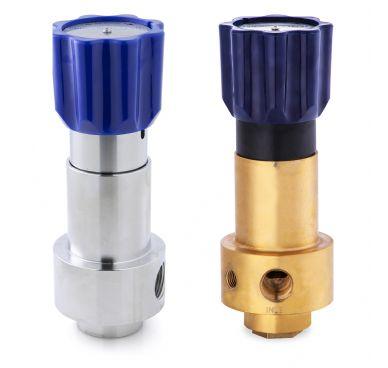

MF301

Medium-Flow Pressure Regulator: Gas or Liquid / Piston / Non- or Self-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 300 bar (4,350 psi) / Cv 1.0 & 2.0

Product Overview MF301

 INTRODUCING THE MF301...
The MF301 is a piston-sensed non-venting or self-venting regulator for gas or liquid applications. A PEEK™ seat is required for liquid applications.

The MF301 offers a balanced main valve as standard for maximum inlet and control pressures of up to 300 bar (4,350 psi). For higher pressures, please refer to our MF400/401.

Alternatively, an unbalanced option can be offered for applications with maximum inlet and control pressures of up to 50 bar (725 psi).

MF301 Features

• Piston sensing element
• Balanced main valve design
• Self-venting or non-venting
• Lower entry plug for simplified seat servicing

MF301 Specifications

Maximum Rated Inlet Pressure: 300 bar (4,350 psi)
Outlet Ranges: Up to 300 bar (4,350 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight: 3.2kg (7.2lbs)
