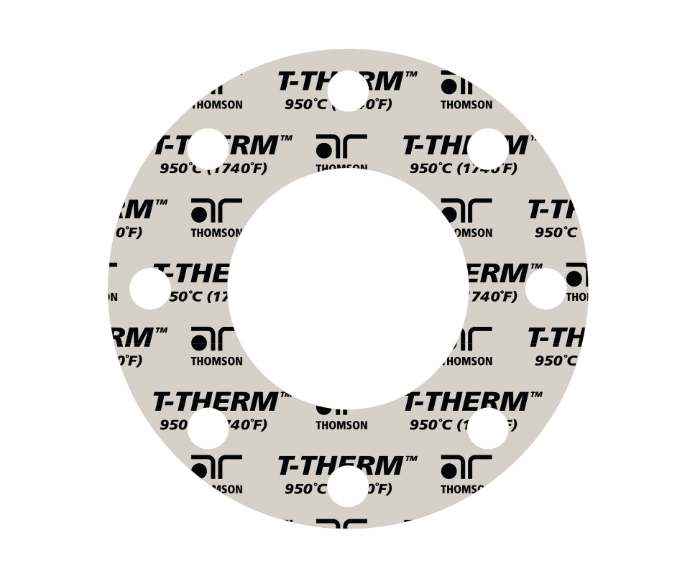

T-THERM™ – Vermiculite Based Gasket

Vermiculite based gasket for high
temperature applications. T-THERM™
with SS 316L stainless tanged insert.
API 6FB 3rd edition Fire Tested.

Features / Benefits:

• Extreme temperature and pressure in Hot Dry
  Gas applications. T-THERM™ has added blow out
  resistance due to its tanged stainless steel insert.
• Excellent thermal and chemical resistance.
• Good electrical insulation and low thermal conductivity.


Typical Applications:

• Ovens, burners and exhaust systems.
• Chemical, Petrochemical, Automotive and Engine building industries.
• Heating systems and high temp. applications.


Specifications:

Construction:  Vermiculite & proprietary binders T-THERM™ 316L stainless tanged insert.
Colour: Soft Grey
Pressure, Max: Class 150 & 300lb​
Temperature, Max:  1740°F (950°C)
Dimensions:
39.4” x 39.4” 1m x 1m (1000mm x 1000mm)
59” x 59” 1.5m x 1.5m (1500mm x 1500mm)
1.5mm (.059”), 2.0mm (.078”), 3.00mm (.118”)

 * See datasheet for technical data.
