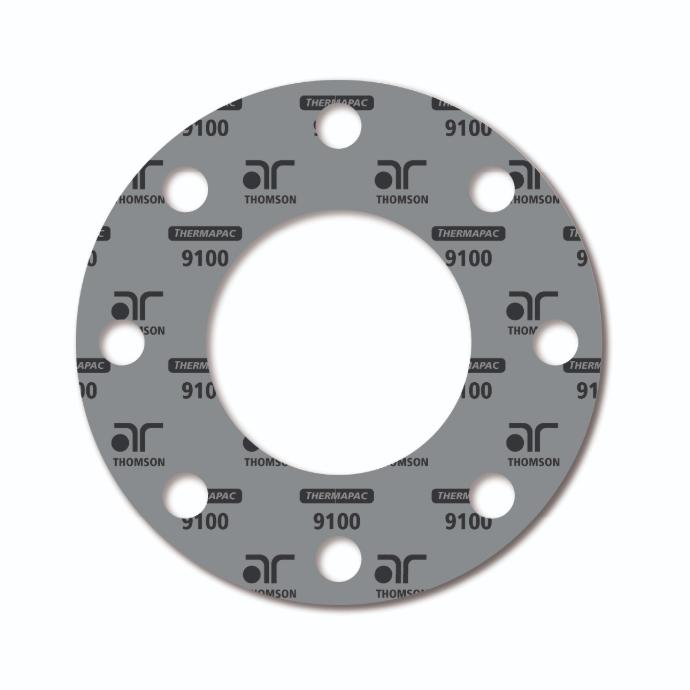

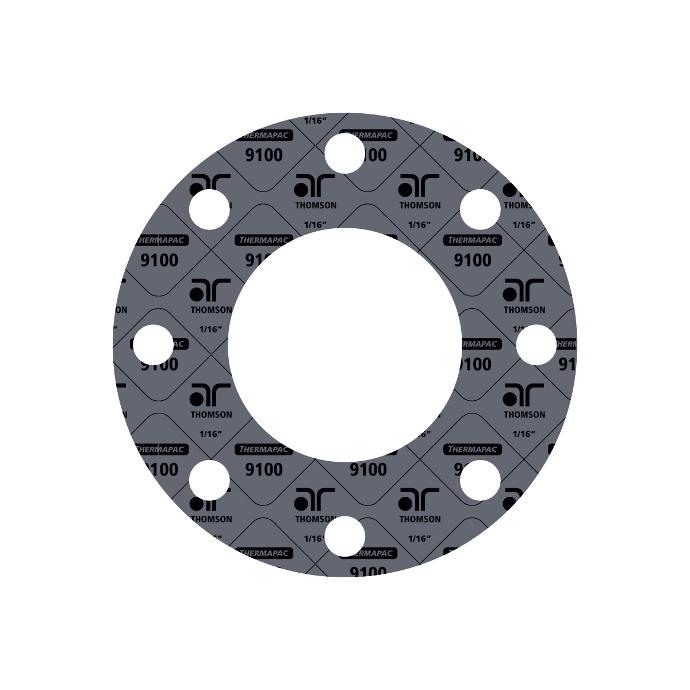

ThermaPac 9100® – Carbon Fiber/Nitrile Binder
Carbon Fiber / Nitrile Binder.
Features / Benefits:
- High temperature capability, steam and chemical
resistance. - Flexible and easy to cut compared with typical carbon
based sheet. - Reduces maintenance - maintains effective seal during
pressure and thermal cycling (superior torque retention).
Typical Applications:
- General service sheet packing material for demanding applications in Chemical, Pulp and Paper, Petroleum, Power
Generation, and high temperature service in all industries. - Saturated steam to 150 lbs, water, oils, gasoline, aliphatic hydrocarbons and most refrigerants.
Specifications:
Construction: Carbon Fiber / Nitrile Binder
Colour: Black with Black branding
Pressure, Max: 1885 psi (130 bar)
Tensile Strength Across Grain - ASTM F152: 2175 psi (15 N/mm2)
pH Range: 3–11pH
Temperatures:
Intermittent: +900°F (+482°C)
Continuous: +650°F (+343°C)
*For steam applications above 150 lbs saturated contact A.R. Thomson Group Inc.
* See datasheet for technical data.
