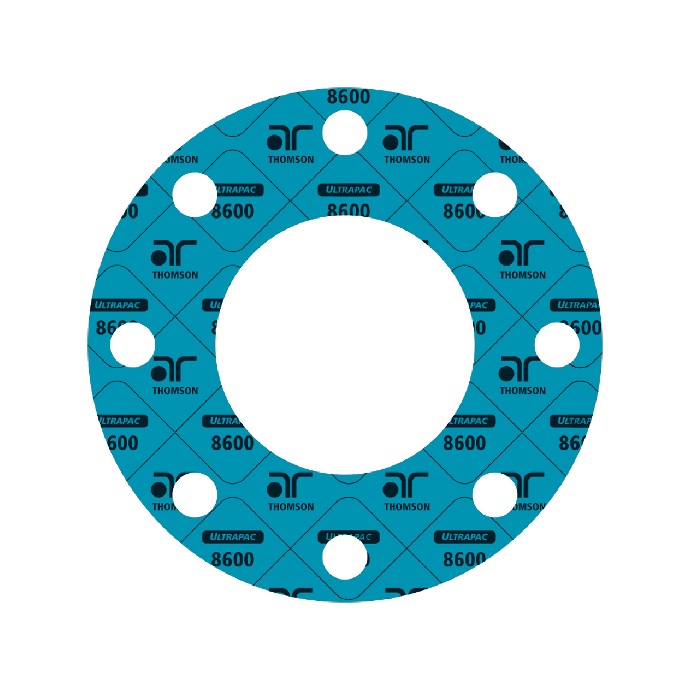

UltraPac™ 8600 – Graphite/Aramid/Nitrile Gasket

Graphite, Aramid, and functional inorganic fibers with Nitrile (NBR) binder. A unique material with very good temperature and chemical compatibility that is exceptionally easy to cut and fabricate hand cut gaskets from. Produced using a water-based process which is environmentally friendly.

Features / Benefits:

• ​Excellent general service sheet.
• Outstanding mechanical properties and handle ability
• Very flexible sheet for cutting narrow cross sections or
  nonstandard shapes and sizes.
• Superior chemical compatibility.



Typical Applications:


• High Performance general service sheet material for fabrication of gaskets in moderate service conditions in Pulp and Paper, Petroleum, Wastewater, Mining and Shipbuilding industries.
• Saturated Steam, hot water, hydrocarbons, oils and gasoline.


Temp. Range, Max:
Minimum: -100°F  (-75°C)
Intermittent: 662°F  (350°C)
Continuous: 482°F  (250°C)


*Contact your A.R. Thomson Technical Sales Representative for applications approaching the upper limits of the material.

Pressure: 1500 psi  (103 bar)

Construction:
Graphite / Aramid / Nitrile (NBR)


Download Datasheet

Next-Gen Compressed Sheet

• Outstanding temperature range compared with traditional sheet gaskets.
• Chemical Compatibility: Resistant to a wider variety of chemicals and well-suited for steam service.
• Exceptionally easy to handle: Highly flexible and easy to cut making it ideal for narrow flanges or hand-cutting irregular gaskets. This increases productivity while minimizing waste.
• Hazard-Free: Produced using a chemical-free, water-based process that is Nitrosamine-free and environmentally friendly.
• Anti-Stick Technology: Thomson Sure-Release® Anti-Stick Technology for easy removal, even after long-term service at high temperatures.
